Low Temp Packagess (-18 / -21 Deg C)

Retail Shopfittings; stock a great range of freezer room refrigeration packages.

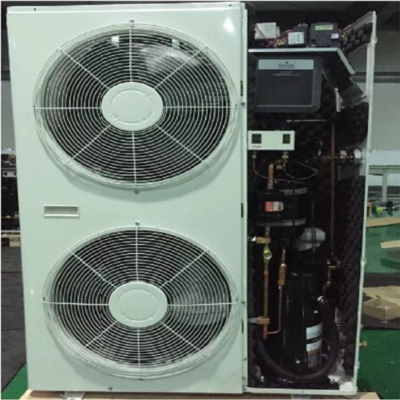

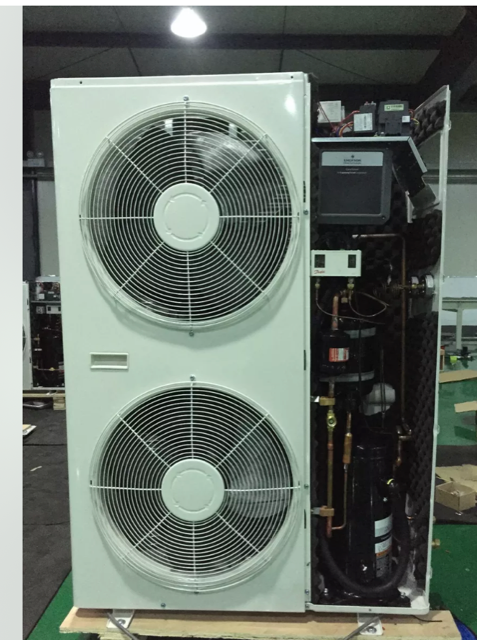

PACKS INCLUDE  ——–     1- OUTDOOR CONDENSING UNIT, 2- INDOOR FAN COOLER & 3- ELECTRONIC CONTROLLER.

Available in the following sizes:

1.5HP (Room Size 3 m3),  2.5HP (Room Size 14 m3),  3.0HP (Room Size 25 m3),  3.5HP (Room Size 33 m3),  4.5HP (Room Size 50 m3),  6.0HP (Room Size 85 m3) &  7.5HP (Room Size 100 m3).

They can FREEZE rooms from 3.0 to 100 cubic m. A general rule of thumb to match your coldroom to the right package is 20 W needed per cubic m.

  • As the rooms get bigger you can install two of our packages together.
  • Our evaporators (coolers) are box style and comes nitrogen charged from the factory.
  • Our evaporators have a standard expansion valve fitted and defrost heaters.
  • All packs operate on R449A refrigerant gas.
  • Electronic Controllers are manufactured by the popular ‘Elitech’ and they are durable and perform perfect for the operation.



SKU: RSF35 Categories: ,

Description



Specification:-

REL FREEZER ROOM PACKAGE UNIT:     * 1.5 HP- 4.5 HP operate on single phase (240V).  Single Fan.

* 6.0 HP- 7.5 HP operate on three phase (415V).  Two Fan.

* Evaporator- Single Phase (240V) Box Evaporator/ Cooler, complete with a TEV (Expansion Valve) and Defrost Heaters – Suitable for Frozen Storage.

* Control Panel (ECB 1000/q) – Electronic complete operation, with programmed defrost intervals and temp adjustment.



PRICES    —-

1.5HP (Room Size 3 m3)  ——-          £1750+VAT,     [1- Fan Cooler (300 mm)]

2.5HP (Room Size 14 m3) ——-        £1999+VAT,      [2- Fan Cooler (300 mm)]

3.0HP (Room Size 25 m3) ——-        £2350+VAT,      [3- Fan Cooler (300 mm)]

3.5HP (Room Size 33 m3) ——-       £2440+VAT,       [2- Fan Cooler (400 mm)]

4.5HP (Room Size 50 m3) ——-       £3340+VAT,      [2- Fan Cooler (450 mm)]

6.0HP (Room Size 85 m3) ——-       £3,765+VAT,     [2- Fan Cooler (500 mm)]

7.5HP (Room Size 100 m3) ——       £4,600+VAT.     [2- Fan Cooler (550 mm)]

(One Year Warranty)
